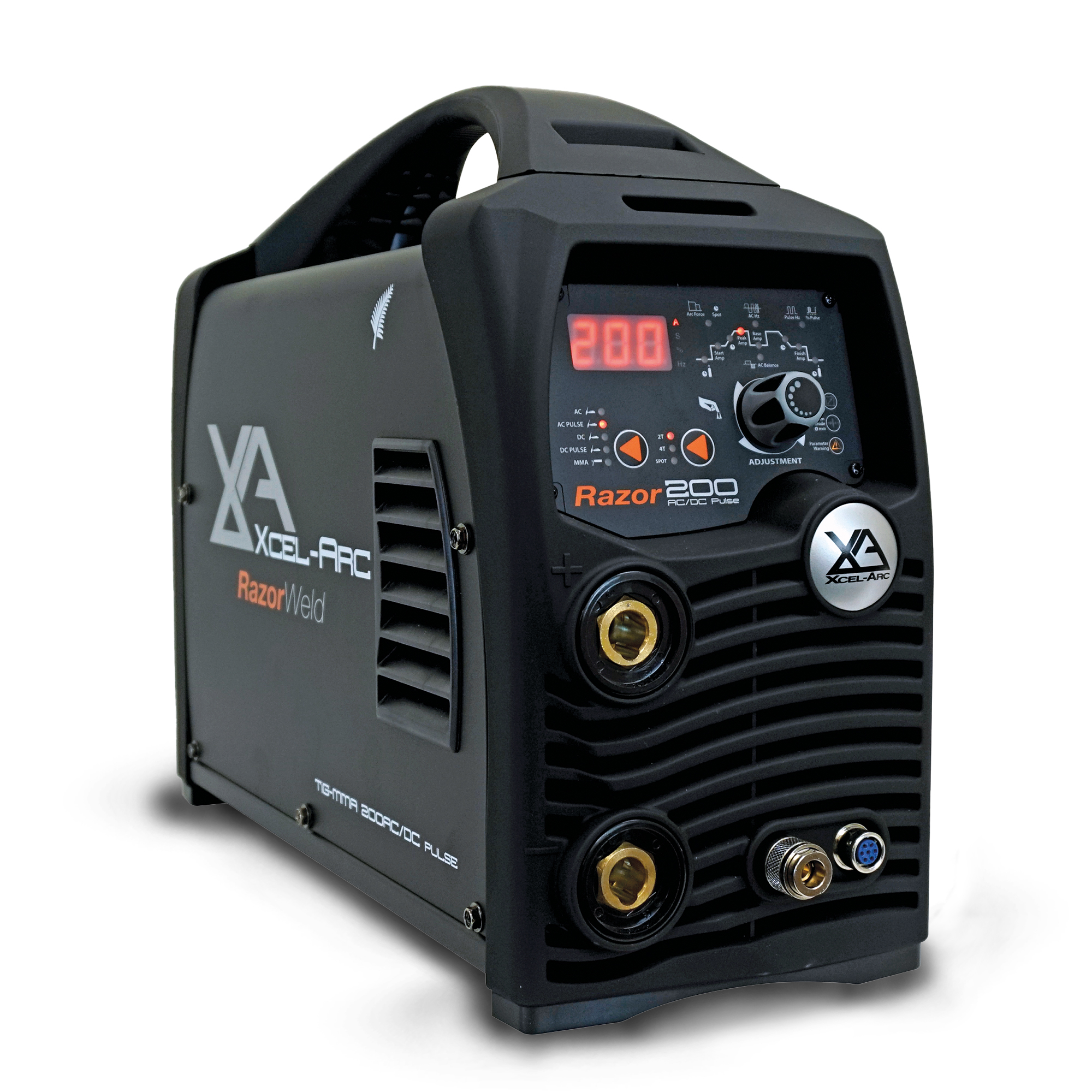

RAZORWELD™ 200 AC/DC TIG Welder (XA-TIG200CRZ)

*DISCONTINUED MODEL

The RAZORWELD™ 200 AC/DC gives you full control over High Frequency AC/DC TIG welding for incredible results from start to finish. Fitted with a portable 15 AMP plug and Pulse TIG functions, this is your go-to professional unit that works a treat on any worksite.

Tailor your TIG settings with a wide range of controllable parameters including Pre Gas Time, Start Current, Up Slope and Down Slope Time, Finish Current Level and Post Gas Time.

The all-new ARC TORCHOLOGY T3 TIG Torch comes standard with the RAZORWELD™ 200 AC/DC, offering up to 30% better power-to-weight ratio and longer consumable lifecycles. A Remote Foot Control can also be plugged into the machine for even more versatility.

• Key features
  • Latest 43kHz IGBT inverter technology
  • AC/DC TIG with HF start
    • Adjustable AC square-wave frequency: 20–250Hz
    • AC balance control (±10)
    • Full pulse TIG control: 0.2–200Hz, pulse width 1–99%
    • Adjustable weld sequence controls: pre-gas, start current, up/down slope, post-gas
    • 2T/4T trigger + Spot mode
    • Remote amperage control ready (optional torch remote/foot pedal)
  • MMA/Stick mode with adjustable Arc Force and strong arc stability
  • Tolerant to variable power supply
  • IP21S protection rating

  Core specs (from info sheet)

  • Power supply: 240V 1‑phase ±15%
  • Rated input power: 6.0 kVA | Ieff: 15.0A (AS/NZ60974-1)
  • Output:
    • TIG: 5–200A / 18.0V
    • MMA: 10–160A / 26.4V
  • No-load voltage: 62V
  • Duty cycle @ 40°C (AS/NZ60974-1): 25% @ 200A TIG, 30% @ 160A MMA
  • Efficiency: 85% | Power factor: 0.70
  • Insulation / protection: Class B / IP21S
  • Size / weight: 410 × 162 × 326mm / 10.5kg
  • Certification: AS/NZ60974-1

  What’s included

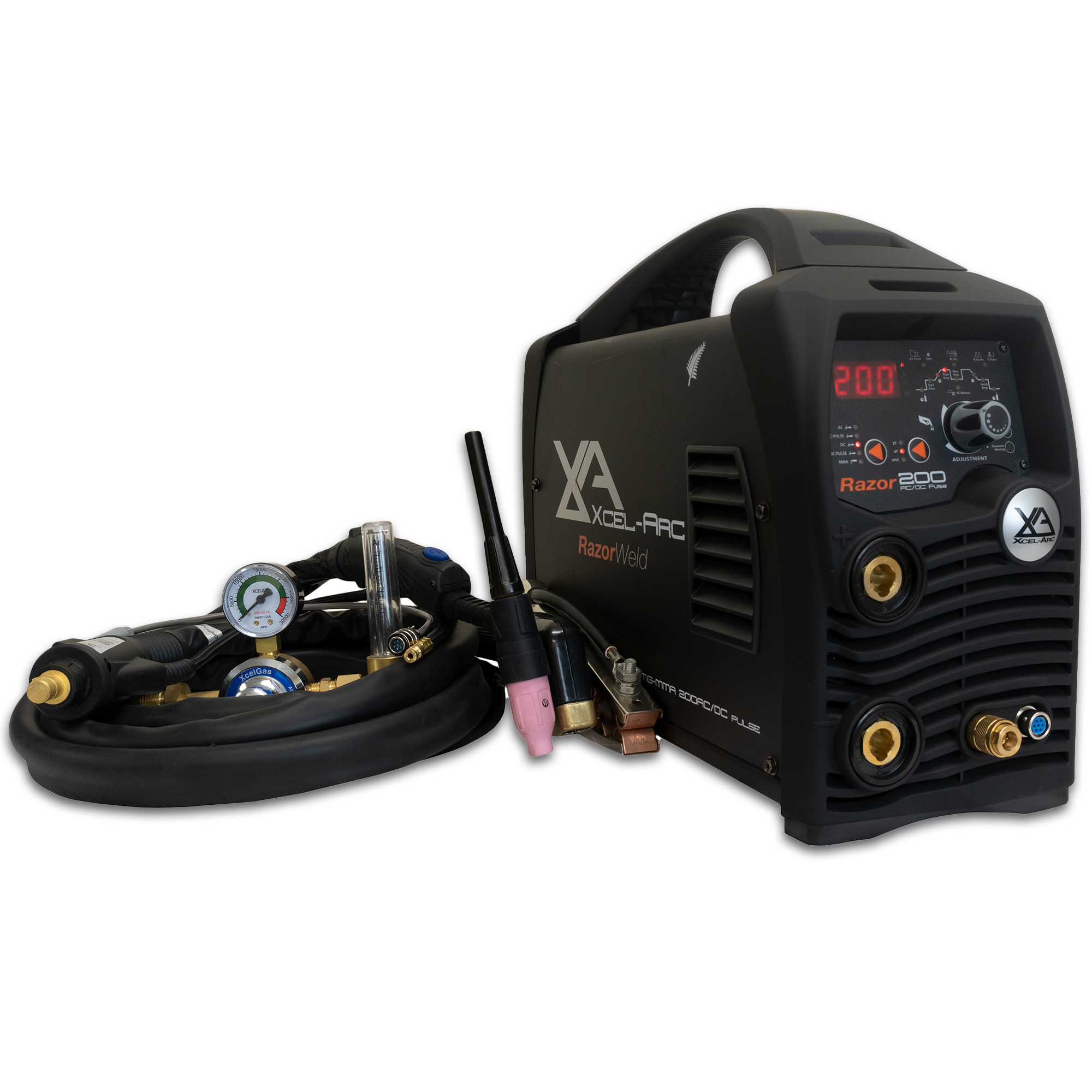

  • TIG200CRZ AC/DC machine
  • ARC T3FX flexi-neck TIG torch (4m)
  • Earth lead & arc lead 25mm × 4m
  • Argon regulator

  Warranty

  • 3 Year Machine Warranty

           INFO SHEET HERE
