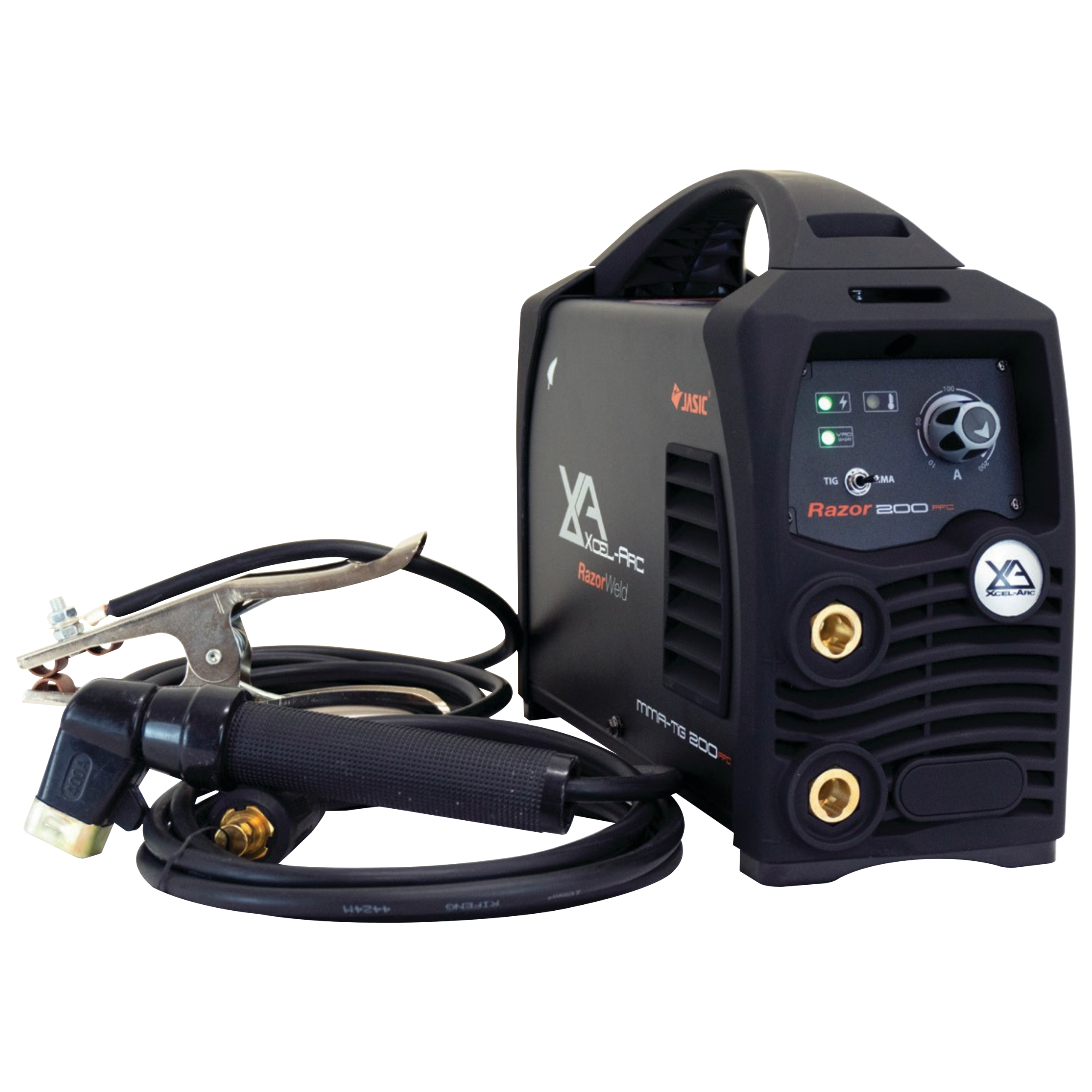

RazorWeld ARC200 (XA-ARC200RZ-K)

200A DC Inverter MMA/TIG Welder (240V)

Compact, professional-grade 200 amp inverter welder built for site work, maintenance, and general fabrication. The RazorWeld ARC200 delivers an exceptionally smooth, stable DC stick (MMA) arc with Hot Start and Arc Force, plus DC TIG capability with Lift-Arc ignition (optional torch) for clean starts without tungsten sticking.

Featuring advanced 40kHz IGBT inverter technology and Power Factor Correction (PFC) for maximum electrical efficiency, it’s generator-compatible and engineered to AS/NZ60974-1.

Key features

• 200A DC MMA (Stick) + DC TIG (Lift-Arc) capability (TIG torch optional)
• PFC (Power Factor Correction) for improved efficiency and site-friendly performance
• Selectable VRD (Voltage Reduction Device) for added safety (On/Off)
• Hot Start for easier electrode striking; Arc Force to help prevent electrode sticking
• Thermal overload protection, IP21S protection rating
• Generator compatible (recommended 9.0 kVA minimum)
• Welds steel, stainless, cast iron, bronze, and copper (process/material dependent)
• Power supply: 240V single phase ±15%
• Rated input power: 9.0 kVA | Ieff: 15A (AS/NZ60974-1)
• Output range: 10–200A
• Rated output: 200A / 28V (MMA), 200A / 18V (TIG)
• Duty cycle @ 40°C: 25% @ 200A (MMA/TIG)
• OCV: 77V (VRD Off) / 9V (VRD On)
• Protection / insulation: IP21S / Class F
• Size / weight: 365 × 135 × 227mm / 6.5kg
